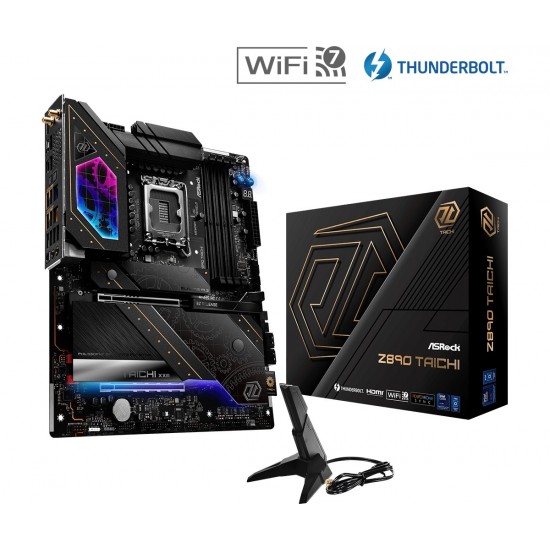

Płyta główna Z890 TAICHI ATX

Z890 TAICHI

30.5 cm x 24.4 cm

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Polychrome SYNC
• ASRock Dragon 2.5G LAN Software*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

• 4 x kabel danych SATA
• Karta rozszerzeń M.2
• Antena ASRock WiFi 2,4/5/6 GHz
• Kabel rozdzielający ARGB
• 3 x kabel termistora
• Śruba do gniazda M.2
• Dystans do gniazda M.2

Certyfikaty

• FCC, CE
• Gotowość do ErP/EuP (wymagany zasilacz gotowy do ErP/EuP)
• Gotowość do CEC Tier II

Intel Z890

LAN

• 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

Wireless LAN

• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 320MHz channel bandwidth with 6GHz* frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

• Intel Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

• 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• WIMA Audio Capacitors (For Rear Outputs)
• ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
• Individual PCB Layers for R/L Audio Channel
• Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
• Nahimic Audio

256Mb AMI UEFI Legal BIOS with GUI support
