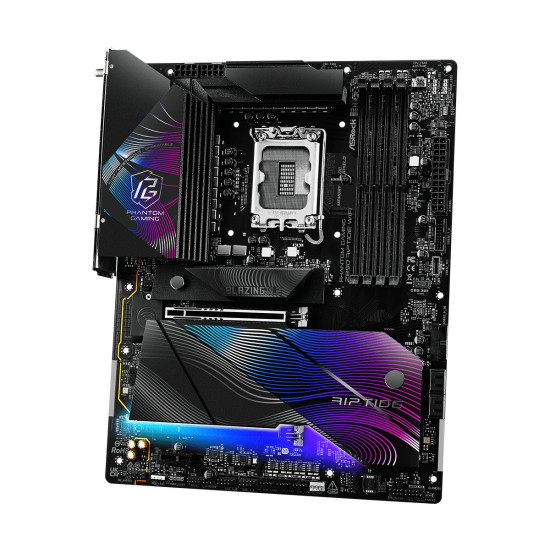

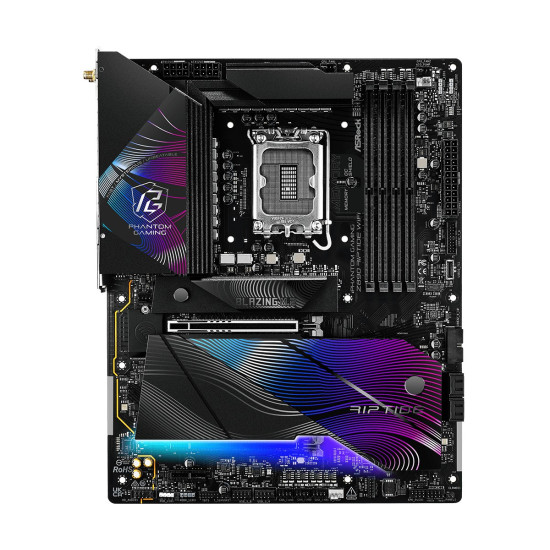

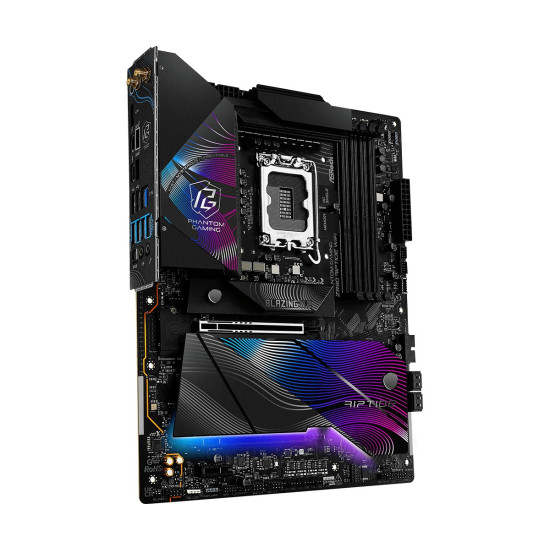

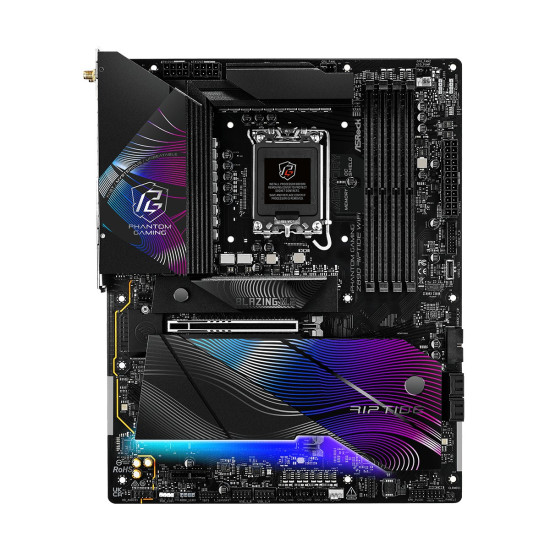

Płyta główna Z890 RIPTIDE WIFI ATX

Z890 RIPTIDE WIFI

30.5 cm x 24.4 cm

Software

• ASRock Motherboard Utility (Phantom Gaming Tuning)
• Killer Control Center
• ASRock Polychrome SYNC*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

• 2 x Kabel danych SATA
• Antena ASRock WiFi 2,4/5/6 GHz
• Kabel rozdzielający ARGB
• Kabel termistora

Certyfikaty

• FCC, CE
• ErP/EuP ready (wymagany zasilacz ErP/EuP ready)

Intel Z890

LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Killer E3100G
• Supports Killer LAN Software

Wireless LAN

• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz frequency band*
• Supports 320MHz channel bandwidth with 6GHz frequency band*
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors

• Intel Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• Impedance Sensing on Rear Out port
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio

256Mb AMI UEFI Legal BIOS with GUI support
